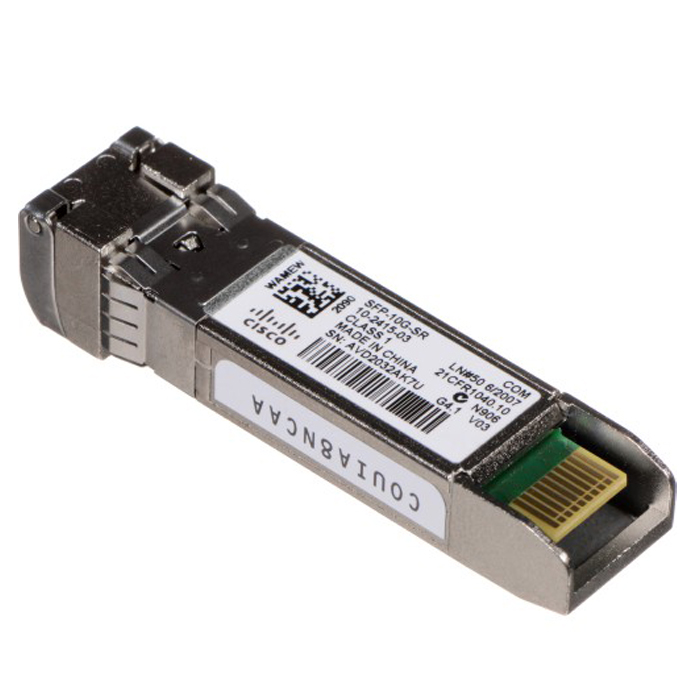

Cisco 10GBASE-SR SFP Transceiver Module (Compatible)
Description:
Cisco 10Gb SFP+ SR (Short Range) 850nm Transceiver Module
Part Number(s)
Cisco Part# SFP-10G-SR
Overview:
The Cisco™ SFP+ transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. The Dell networking 10GBase-SR SFP+ transceiver provides 10GbE connectivity up to 300 m. Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
Specification:
The Cisco 10GBASE-SR Module supports a link length of 26m on standard Fiber Distributed Data Interface (FDDI)-grade Multimode Fiber (MMF). Using 2000MHz*km MMF (OM3), up to 300m link lengths are possible. Using 4700MHz*km MMF (OM4), up to 400m link lengths are possible.
- Product Description: Cisco 10GBASE-SR SFP+ Module for MMF
- Warranty: 6 months
- SFP Port Cabling Specifications
Wavelength (nm) | Cable Type | Core Size (Microns) | Modal Bandwidth (MHz*km)*** | Cable Distance* |
850 | MMF | 62.5 62.5 50.0 50.0 50.0 50.0 | 160 (FDDI) 200 (OM1) 400 500 (OM2) 2000 (OM3) 4700 (OM4) | 26m 33m 66m 82m 300m 400m |
* Minimum cabling distance for -SR, -LRM, -LR, -ER modules is 2m, according to the IEEE 802.3ae.
** Links longer than 30km are considered engineered links as per IEEE 802.3ae.
*** Specified at transmission wavelength.
**** Requires 5 dB 1550nm fixed loss attenuator for < 20km. Attenuator is available as a spare. The part number is 15216 ATT LC 5=.
***** Requires 15dB attenuator if Link Distance < 5km.
